Channel Brush - Metal Strip Brushes

Strip Brush Examples

METAL STRIP brushes are used for thousands of applications, from high technology seals to simple snow brushes. Closing gaps, reducing noise, cleaning, weather seals, even cosmetic uses as in SUV's to surround stick shifts or seat belts adjustments in passenger vans. The channel can be filled with synthetic, natural or metal brush fill material.


Formed Metal Strip Brushes

Strip Brush Construction Diagram

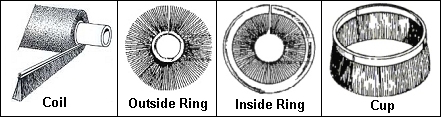

In addition to straight strips, Strip Brushes can also be formed into various shapes, providing greater design flexibility at a completive cost.


Brush Construction

Strip Brush Construction Diagram

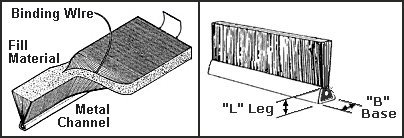

Metal Channel Strip consists of three components: the channel is a formed from a flat strip, the fill brush material, and a binding wire which holds the fill in the channel. Greater and denser brush volume is achieved with larger metal channels.


Channel Sizes

The chart below shows industry standard "Strip Codes" based on "Flat Strip Sizes". The "Formed Size" are typical "Leg" and "Base" dimensions for various channels.

METAL STRIP CHANNEL SIZES
STRIP CODES FLAT STRIP SIZE FORMED SIZE
NUMBER SIZE LETTER WIDTH THICKNESS "B" BASE "L" LEG
2 1/4" A .250" .020" .100" .105"
2 1/2 5/16" AA .3125" .024" .125" .125"
3 3/8" B .375" .024" .147" .148"
4 1/2" C .500" .030" .186" .202"
5 5/8" D .625" .035" .230" .254"
6 3/4" E .750" .035" .275" .290"
7 7/8" F .825" .040" .297" .350"
8 1" G 1" .040" .312" .411"
