Weather Seals - Pedestrian Door Guide
Below we have both Single Doors and Double Doors Brush Strip Guides. Please take a few moments to review and take a few notes, this will assure proper ordering for installation.

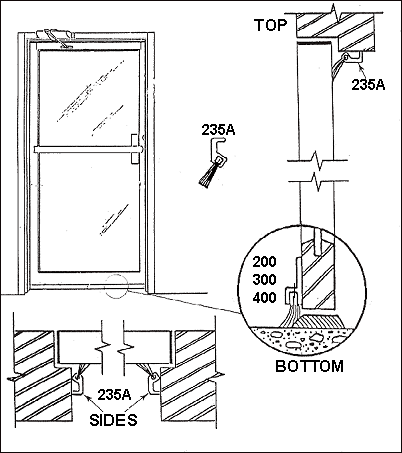

Single Door Weather Strip Guide
TOP and SIDES:
Typically the angled 235A holder is used on the sides and top of pedestrian doors. The raised holder gives a nice finished look compared to standard angled brushes, however it may not work for all doors.
BOTTOM:
Depending on the gap and usage, straight 200 or 300 mounts can be used at the bottom.
GAPS and MEASUREMENTS
You'll need to take these basic measurements:
1. The width of the door.
2. The height of the door.
3. Note any gap space at the bottom, sides and top of the door.
Go back to:
Seal Installation Guides
Go to:
Catalogs 'In Stock' Brush Seals and Guards
Double Door Weather Strip Guide
TOP and SIDES:
Typically the angled 235A holder is used on the sides and top of pedestrian doors. The raised holder gives a nice finished look compared to standard angled brushes, however it may not work for all doors.
BOTTOM:
Depending on the gap and usage, straight 200 or 300 mounts can be used at the bottom.
ASTRAGAL:
2 straight 200 mount brushes facing each other with the tips touching. This can be inside or outside
GAPS and MEASUREMENTS
You'll need to take these basic measurements:
1. The astragal gap near the top of the door.
2. The astragal gap near the bottom of the door.
3. The width of the door.
4. The height of the door.
5. Note any gap space at the bottom, sides and top of the door.
