Below are both Sectional Overhead and Rolling Drum Dock Door Brush Weather Seal Guides. Please take a few moments to review and take a few notes, this will assure proper ordering for installation. Angles and sizes vary with different doors, illustrated below are some of the most common installations.


Sectional Overhead Dock Door Weather Strip Brush Guide

Sectional Overhead Dock Door SIZE:
#5 size brushes will work for most applications, #7 brushes should be used for heavy duty usage or sever conditions.

TOP:
Outside, angle mount (545) on the header or inside, straight mount (500) on the top of the door.

SIDES:
Outside, angle mount (545) on the jam or inside, right angle (590) mount on the track.

BOTTOM:
Outside or inside, angle mount (545) on door.

Sectional Overhead Dock Door
GAPS and MEASUREMENTS
You'll need to take these basic measurements:
1. The width of the door.
2. The height of the door.
3. The gap space at the bottom of the door.
4. The gap space between the lintel and the top of the door


Rolling Drum Dock Door Weather Strip Brush Guide

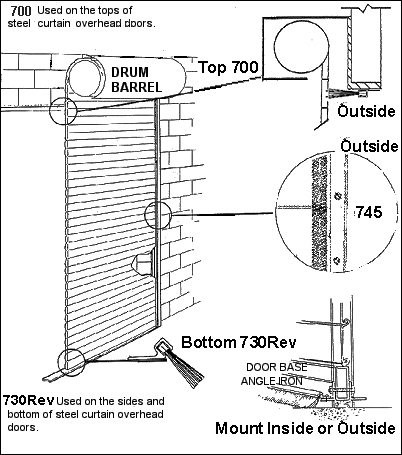

Rolling Drum Dock Door SIZE:
With recess door slats and large gaps on the sides and tops typical seen with rolling drum doors, we usually recommend #7 size brushes. #5 brushes can be used as an alternative.

TOP:
Outside, straight mount (700) on the header.

SIDES:
Outside, angle mount (745) on the jam or inside, reverse angle (730) mount on the track.

BOTTOM:
Outside or inside, reverse angle mount (730) on door.

Rolling Drum Dock Door GAPS and MEASUREMENTS
You'll need to take these basic measurements:
1. The width of the door.
2. The height of the door.
3. The gap space at the bottom of the door.
4. The gap space between the lintel and the door curtain when the door is closed.
